DVLS

DVLS SimDist Analyzers

제조사 : Davinci / DVLS

수입판매원 : GM Science



제품문의 : 홍성철

메일 : schong@gmscience.com

전화 : 010-3857-6759

제품설명

DVLS SimDist Analyzers

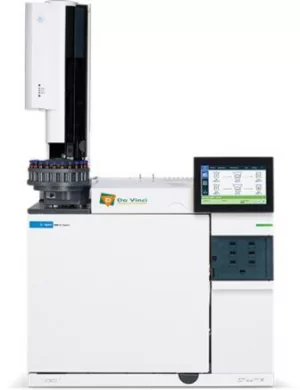

Da Vinci Laboratory Solutions offers a complete range of SimDist Analyzers that comply with all standard test methods of ASTM, DIN, EN, IP and ISO for a simulated distillation. Each DVLS SimDist analyzer is based upon the Agilent Gas Chromatograph configured with the required hardware and software components.




Simulated Distillation by GC

The SimDist analyzers comply with all standard test methods of ASTM, DIN, EN, IP and ISO for a simulated distillation:

  • ASTM D2887, D5442, D6352, D7096, D7169, D7213, D7398, D7500
  • IP 406, IP 480, IP 507, IP 545
  • ISO 3924
  • DIN 51.435
  • EN 15199-1, EN 15199-2, EN 15199-3

Applications

The SimDist Analyzers comply with the following methods:

Test Method

DIN 51.435

IP 480 Type A

EN 15199-1

IP 507

EN 15199-2

IP 545

EN 15199-3

Carbon #

C120

C120

FBP (°C)

≤ 615≤ 750

≤ 750

≤ 750

Sample Types

Lube oil base stocks

• Lube oil base stocks

• Mid Distillates

• Residues

• Heavy Distillates

Crude Oil



Test Method

ASTM D7096

ASTM D2887
IP406 ISO3924

ASTM D5442

ASTM
D7213

ASTM D7398

ASTM
D6352

ASTM
D7169

ASTM
D7500

ASTM D7900

Carbon #

< C16

< C44

nC17 - nC44

< C60

< C18 FAMES

C90

< C120

< C110

C1-C9

FBP

(°C)

≤ 280

≤ 545

≤ 545≤ 615≤ 615≤ 700≤ 750

≤ 735

NA

Sample Types

• Gasoline
• Gasoline blending components

• Jet Fuel
• Diesel Fuel

• Wax
• Alkane Profile

• Lube oil base stocks

• FAMES

• Lube oil base stocks

• Vacuum Residues
• Crude Oil

• Distillates
• Lube oil base stocks

• Crude oil

Benefits

  • High Quality GC Hardware - All SimDist Analyzers are based upon the Agilent GC configured with dedicated columns, inlets and detectors.

  • Complete Analyzer Range - The SimDist analyzers comply with all standard test methods of ASTM, DIN, EN, IP and ISO to provide a boiling point distribution up to 750°C.

  • Dedicated SimDist Inlet - The Programmable Temperature Inlet developed by Da Vinci optimizes the peak shape and makes the column/liner connection easier.

  • Proven software platform - The analyzers include the PetroReporter software that automates the data processing and reporting of the properties of petroleum streams. PetroReporter is successfully used by a global installed base of leading oil refineries.

  • Accurate characterization of crude oils - To improve the boiling point characterization of crude oils the DVLS PetroReporter merges the High Temp SimDist with a capillary GC (DHA) analysis.
  • Application Guarantee - Each analyzer is tested according to the in-house testing procedures to check the system performance and to verify the analyzer specification by a reference sample test. Factory Acceptance Test will be scheduled upon request.

  • Configuration

    The SimDist analyzers are based upon the Agilent GC configured for a test method with the required hardware and software components:

    • GC programmable temperature sample inlet (PTI)
    • GC column
    • Calibration, reference or QC samples
    • PetroReporter software.

    Improved SimDist analysis with Dedicated inlet

    The DVLS Programmable Temperature Inlet is a dedicated SimDist inlet that:

    • Allows direct injectionDVLS PTI
    • Provides stable blank runs
    • Minimizes carry over
    • Has no dead volume
    • Avoids discrimination of heavy components

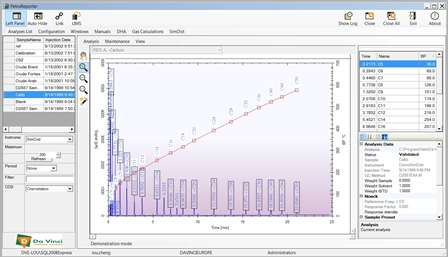

    The DVLS PetroReporter is a universal software tool that automates data processing of petroleum samples. After data processing PetroReporter creates the required SimDist reports. Some examples are: Alkane profile report, cut point distribution report, distillation reports and correlation reports.
